Stronger, longer and more environmentally friendly

HOME

Product Introduction

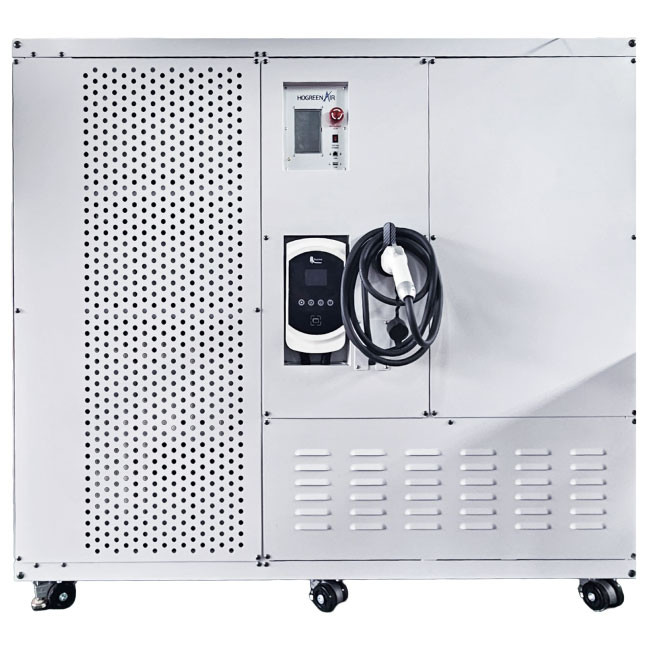

12 kW Hydrogen Fuel Cell Power Generation System (EV Charging Compatible)

This is a 12kW-class hydrogen fuel cell power generation system based on PEMFC (Proton Exchange Membrane Fuel Cell) technology. It is designed for outdoor power generation and can also be utilized for EV charging.

  • No Space Constraints

    No space limitations (requires significantly less installation area compared to solar power systems)

  • No Requirement for Appointing a Safety Manager

    No requirement to appoint a gas safety manager (for up to 8 containers)

  • Eco-Friendly, Policy-Driven Product

    An environmentally friendly solution aligned with hydrogen economy and carbon reduction trends

  • Operational Continuity

    Can be installed while internal facilities are in use (UPS-style concept)

  • Emergency Power Operation During Outages

    Can be used as an emergency power supply during outages (UPS-style concept)

  • Flexible Mobility

    Ensures mobility when relocating sites in the future (portable and movable design)

Product Summary Information

Product Name
 12 kW Hydrogen Fuel Cell Power Generation System (EV Charging Compatible)
Category
Public / Private Use
Type
 PEMFC (Proton Exchange Membrane Fuel Cell)
Rated Output
 11 kW
Power Generation Efficiency
Approx. 42.9%
System Gas Consumption
107.1 L/min = 69.5 g/kWh
Cooling Method
 Air-Cooled
Fuel
Hydrogen ≥ 99.9% (minimum requirement)
Dimensions
1700 × 600 × 1455 mm
WeightApprox. 650 kg
Installation
Indoor Type
System Noise Level
 Approx. 70 dB
Daily Power Generation Capacity
288 kWh
With a rated output of 12 kW, the system can supply up to 288 kWh per day, sufficient to power approximately 28 three-person households or more than 85 people simultaneously, assuming an average household consumption of 300 kWh/month.
System Volume
14.84 m³
Maximum System Output
12 kW
Applications
Hospitals, libraries, schools, government offices and research institutes, museums, indoor and outdoor event venues, remote and island areas (emergency power supply), military camps (field training use), etc.


Related videos

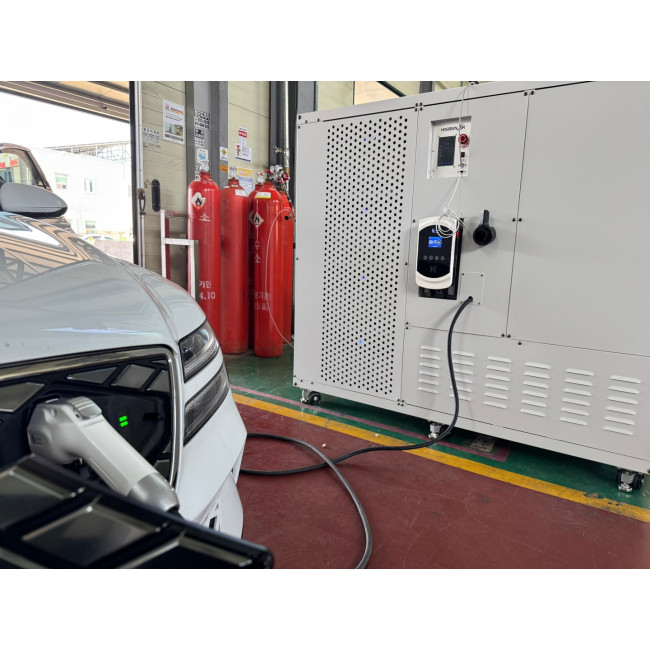

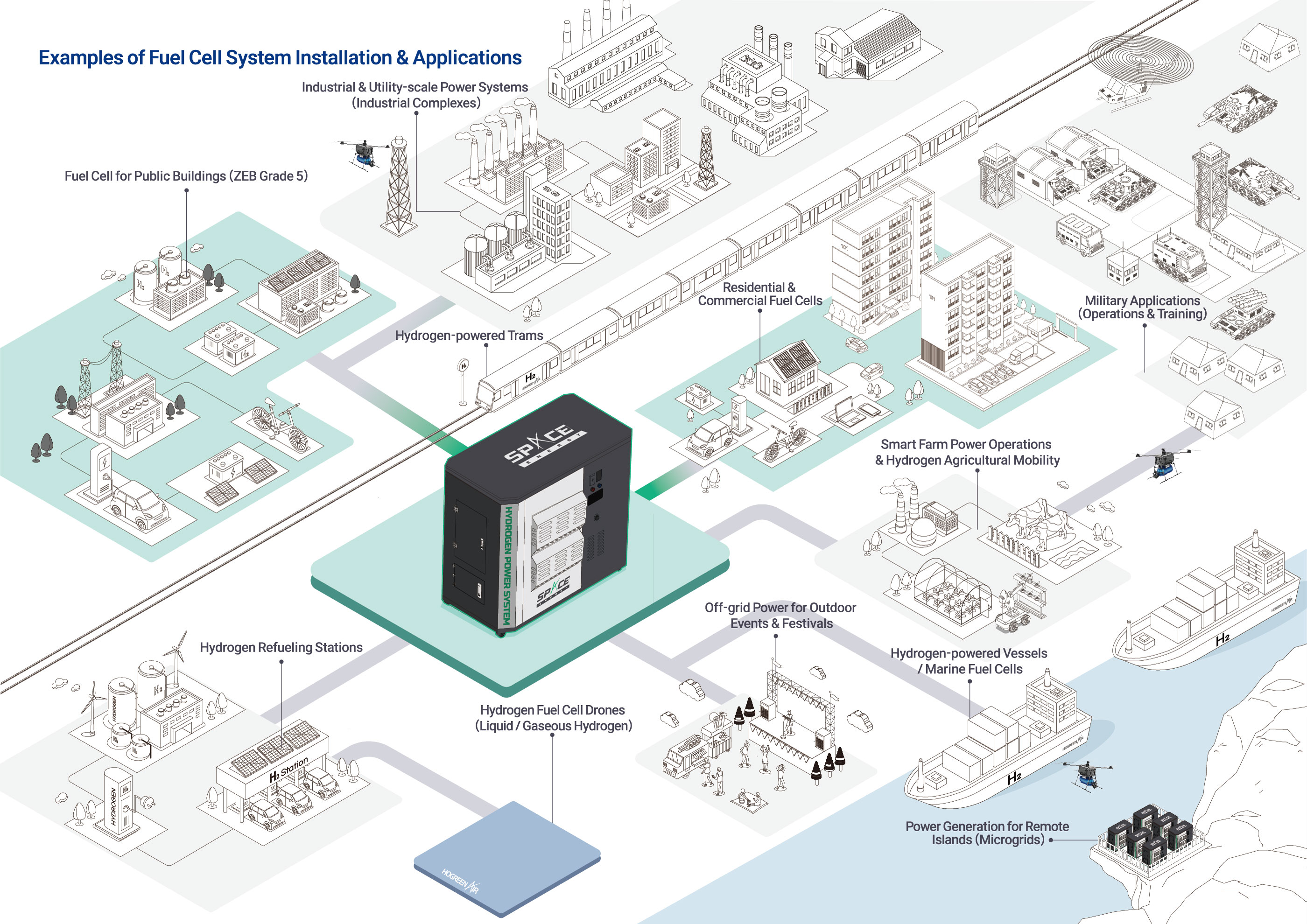

Fuel Cell System Installation Examples

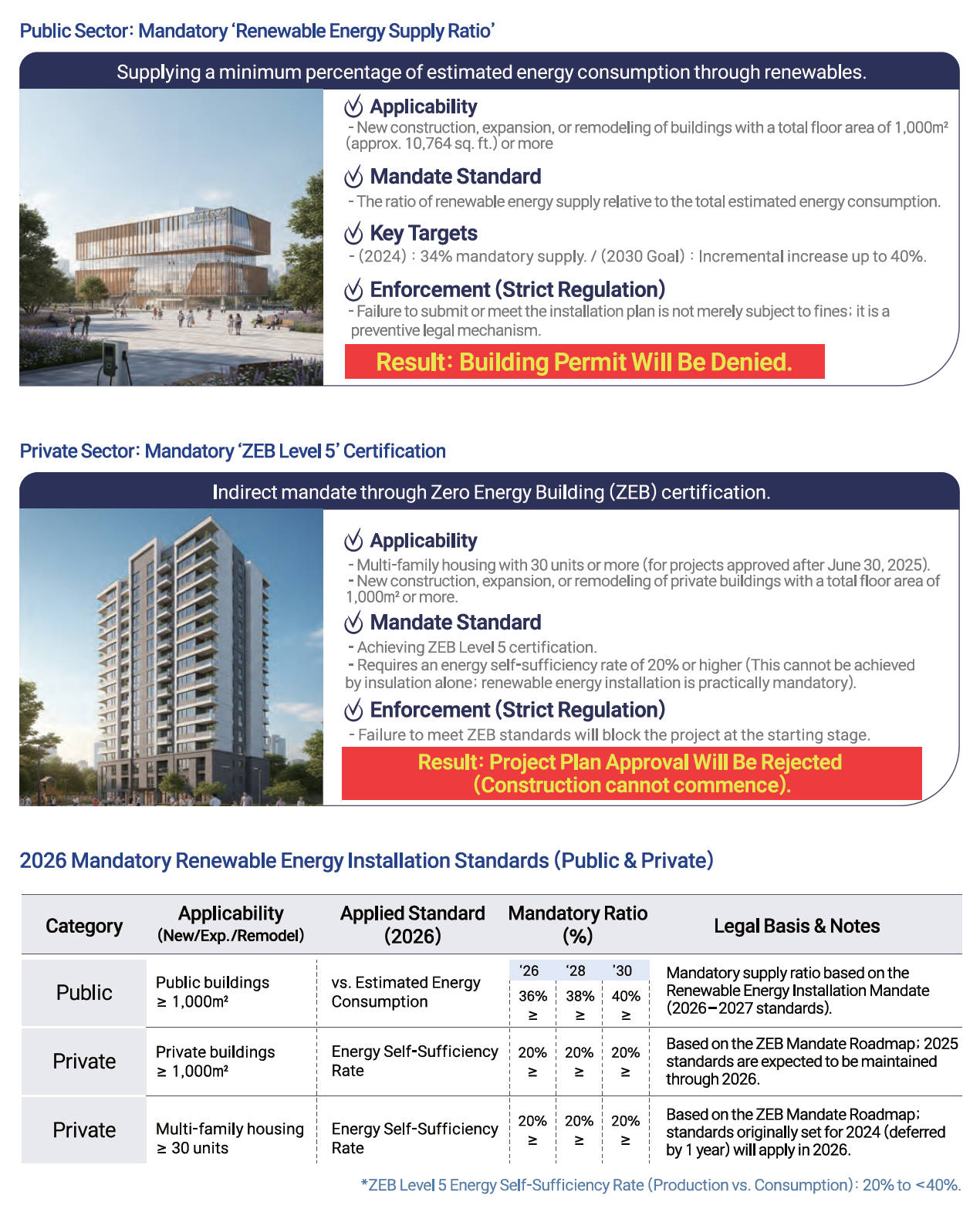

Mandatory Renewable Energy Requirements for Public and Private Buildings


Failure to meet the mandatory renewable energy application standards for new buildings
(Public: required renewable energy ratio / Private: ZEB Level 5)

will result in ineligibility for building permits and project approval.
