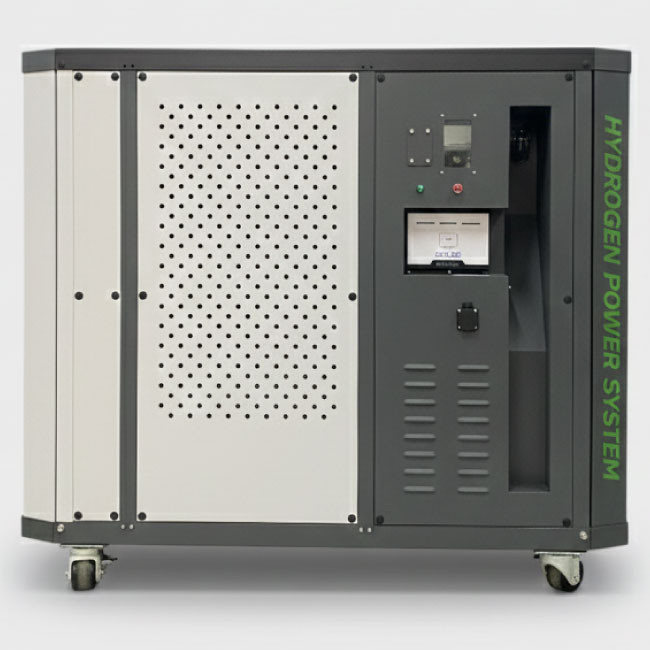

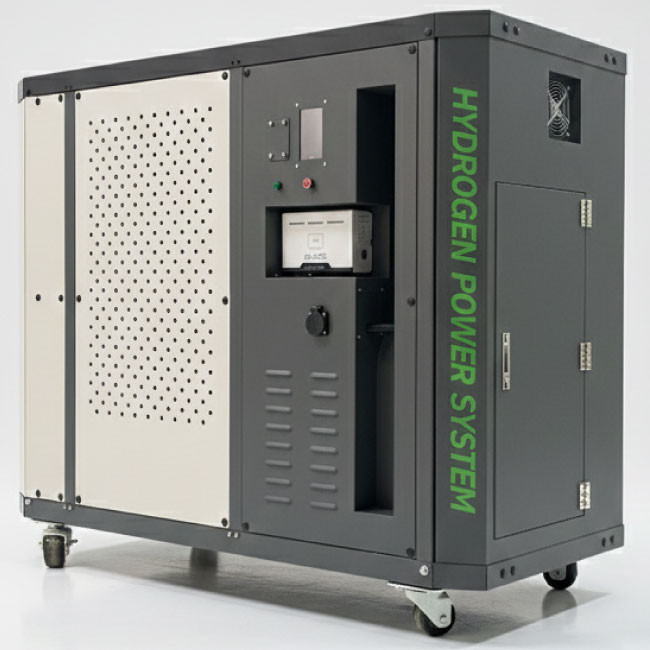

7 kW Hydrogen Fuel Cell Power Generation System (EV Charging Compatible)

This is a 7 kW-class hydrogen fuel cell power generation system based on PEMFC (Proton Exchange Membrane Fuel Cell) technology. The system is designed for outdoor power generation and can also be utilized as an EV charging power source, providing flexible and reliable off-grid energy supply.

  • Space Constraints

    No space constraints due to a significantly smaller installation footprint compared to solar power.

  • Mandatory Appointment of Manager

    No mandatory appointment of a gas safety manager required (for systems with 8 cylinders or fewer).

  • Eco-friendly Business Product

    An eco-friendly business model that aligns with the global hydrogen economy and carbon reduction trends.

  • Continuity of Operation

    Can be installed during internal operations, functioning similarly to a UPS (Uninterruptible Power Supply) system.

  • Emergency Power Operation

    Serves as an emergency power source during outages, providing UPS-like reliability.

  • Flexible Mobility

    Ensures high mobility and ease of relocation for future site changes.

Product Summary Information


Product Name
 12 kW Hydrogen Fuel Cell Power Generation System (EV Charging Compatible)
Category
 Public / Private Use
Type
 PEMFC (Proton Exchange Membrane Fuel Cell)
Rated Output
 11 kW
Power Generation Efficiency
 Approx. 42.9%
System Gas Consumption
 107.1 L/min = 69.5 g/kWh
Cooling Method
 Air-Cooled
Fuel
 Hydrogen ≥ 99.9% (minimum requirement)
Dimensions
 1700 × 600 × 1455 mm
Weight
 Approx. 650 kg
Installation
 Indoor Type
System Noise Level
 Approx. 70 dB
Daily Power Generation Capacity
 288 kWh
With a rated output of 12 kW, the system can supply up to 288 kWh per day, sufficient to power approximately 28 three-person households or more than 85 people simultaneously, assuming an average household consumption of 300 kWh/month.
System Volume
 14.84 m³
Maximum System Output
 12 kW
ApplicationsHospitals, libraries, schools, government offices and research institutes, museums, indoor and outdoor event venues, remote and island areas (emergency power supply), military camps (field training use), etc.

Related videos

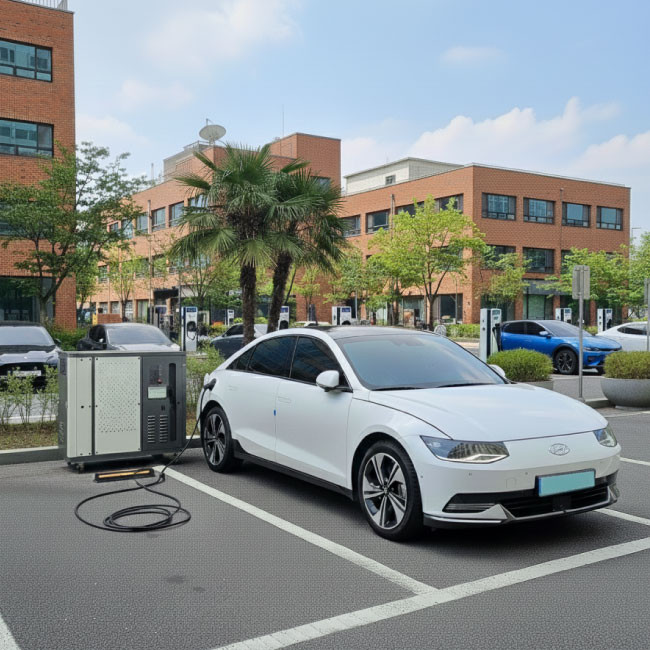

Fuel Cell System Installation Examples

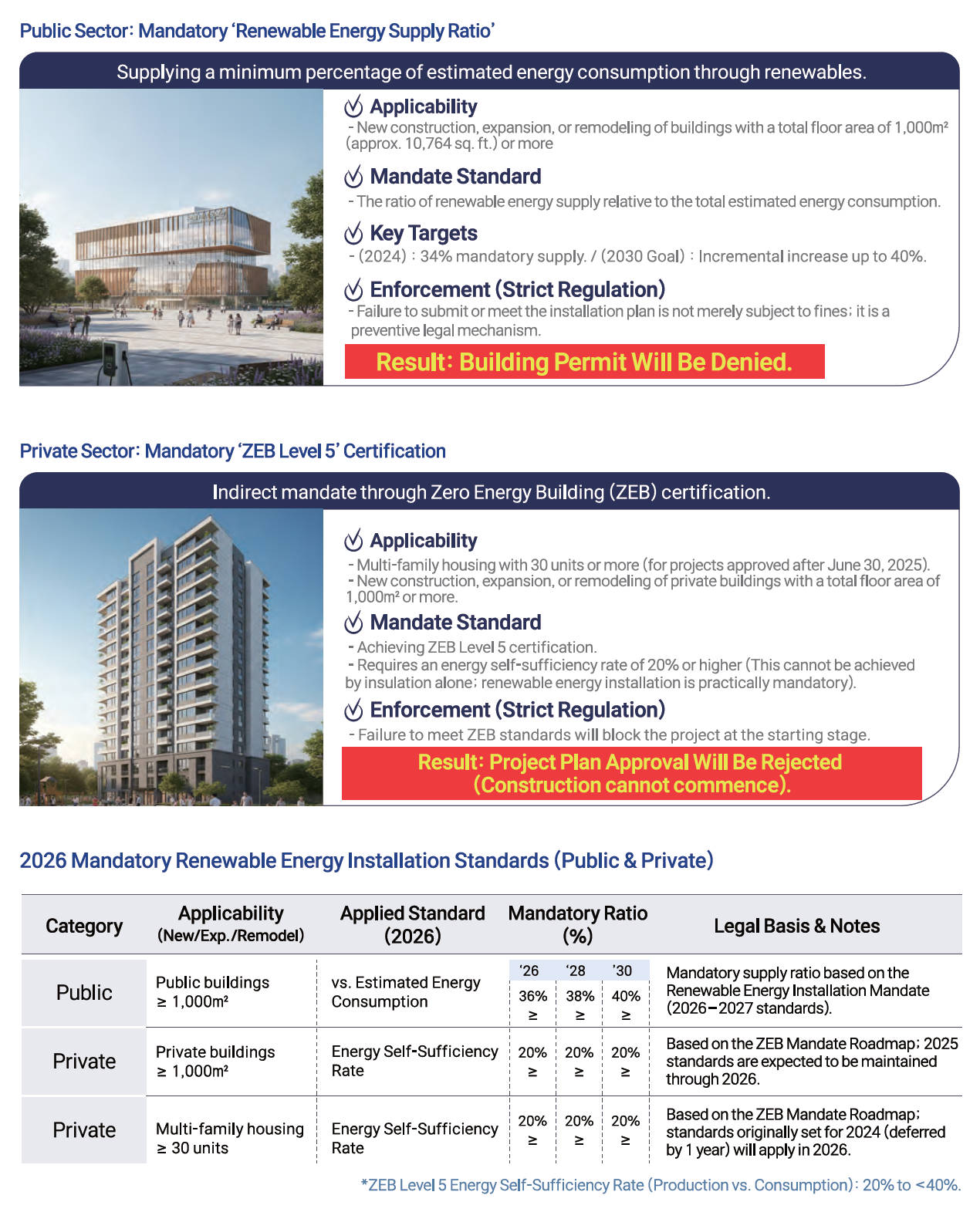

Mandatory Renewable Energy Requirements for Public and Private Buildings

Failure to meet the mandatory renewable energy application standards for new buildings
(Public: required renewable energy ratio / Private: ZEB Level 5)
will result in ineligibility for building permits and project approval.
