IE-SOAR 1.2kW

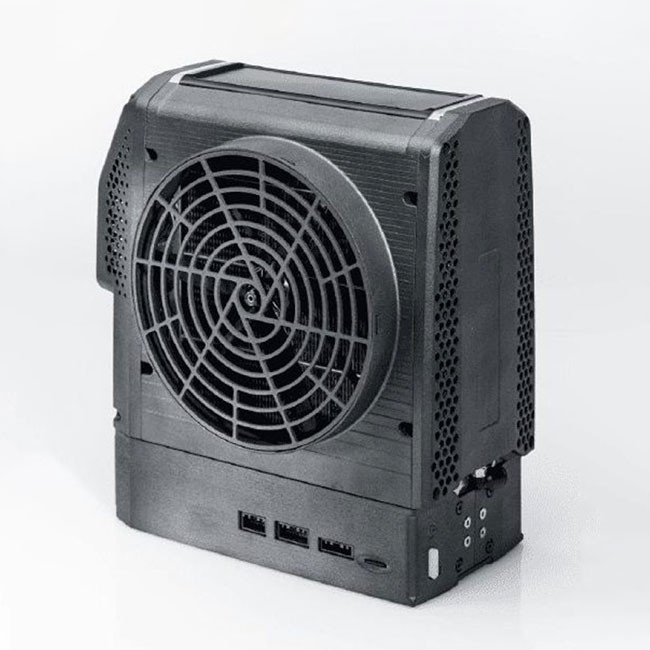

IE-SOAR™ 1.2kW is a fuel cell module optimized for VTOL (Vertical Take-Off and Landing) and fixed-wing applications. It employs lightweight fuel cell technology and a modular structure, offering users greater flexibility and significantly extended flight times.

  • Clean and Eco-Friendly

    Provides clean energy with Intelligent Energy's IE-Drive fuel cell module.

  • Low Operational Noise

    Nearly silent operation with virtually no noise, allowing for vibration-free operation for maximum stability.

  • Highly Safe and Reliable Design

    Features built-in power system redundancy and Single Point of Failure (SPOF) resilience.

  • Ideal for VTOL

    Well-suited for both VTOL and fixed-wing applications.

  • Replaceable Batteries

    Compatible with 12S to 16S, and can be easily replaced like batteries, automatically adapting to load demands.

  • Warranty Period

    1000 hours

Product Summary Information


Maximum Continuous Power 1,200W
Maximum Power (Using Hybrid Battery) Up to 8,000W
Output Voltage (DC/DC Adjustable) Configurable between 50V and 70V
Fuel Cell Power Module (Fuel Cell) Size (Fuel Cell) 210 x 105 x 105mm
Weight 195 x 90 x 40 mm
Hydrogen RegulatorWeight315g
Maximum Regulator (Cylinder) Pressure 350bar/5,000psi
Output Pressure 0.9bar ± 0.1/13psi ± 1.5psi
Maximum Cylinder Weight: 10kg
Basic Hybrid BatteryConfiguration2 x 6S in series
Size (Per Battery)135 x 40 x 40 mm
Weight (Per Battery)535g
Capacity (Per Battery)3,300mAh
Peak Power4,800W
Operating Environment Start Temperature 5°C to 40°C
Operating Temperature -5°C to 40°C
Maximum Altitude 5,000m
Storage Temperature -10°C to 70°C
System Warranty 1000 hours


IE-SOAR 1.2kW Product's 3D Detail

To explore in-depth details, please refer to the product catalog.

PDF 다운로드 견적문의
Environmentally Friendly Hydrogen Energy for Clean and Unpolluted Power

Environmentally Friendly Hydrogen Energy for Clean and Unpolluted Power Utilizing hydrogen energy as an infinite clean energy source, considerate of nature, we've developed a fuel cell to enhance safety and reliability, replacing batteries. This allows for significantly longer flight times without being constrained by time and location.

Versatile Applications

With the ability to be applied in various fields such as delivery services, linear inspections, film production, civil inspections, agriculture, military surveillance, LiDAR, mapping, and more, this technology opens doors to achieving more.
